Slewing Bearing Surface Treatment - Blackening, Phosphating andZinc Plating

Views: 15     Author: Site Editor     Publish Time: 2021-07-14      Origin: Site

Slewing Bearing Surface Treatment - Blackening, Phosphating andZinc Plating

Slewing bearing surface treatment is a process for manually forming a surface layer on the surface of slewing ringsthat is different from the mechanical, physical, and chemical properties of the substrate. The purpose of surfacetreatment is to meet the requirements of rustproof, corrosion resistance, wear resistance, decoration, etc. Commonsurface treatment methods are mechanical grinding, chemical treatment, surface heat treatment, painting.Since some slewing bearings are applied on equipments which will be exposed to the weather, and the cost ofstainless steel slewing ring is too high(also limited by production technique too), slewing bearing surface treatmentbecomes a good choice to extend bearings service life.The most widely used surface treatment processes on slewing bearing are blackening, phosphate and zinc plating.Besides, the slewing rings for wind turbine are with special painting, we'll talk about this type later.Surface blackening and phosphate treatment may be similar from the outside, but they are very different in processand agent selection, their film structure are different too.

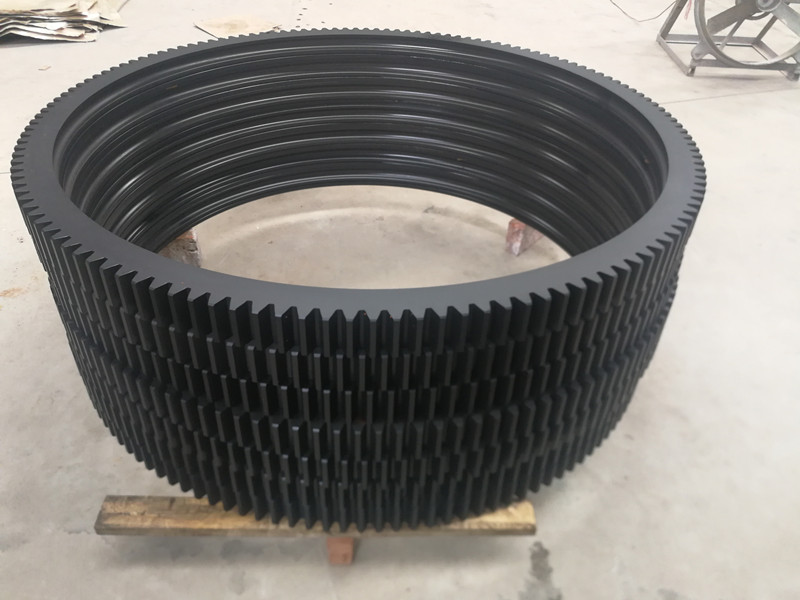

Blackening
Blackening or black oxide treated belongs to oxidation process. Bearings are immersed in concentrated oxidizingacid solution to produce a very thin oxide film on the surface. The film compositions is mainly triiron tetroxide withthickness about 0.5 ~1.5pm, which barely has any affect on the dimension of bearing.It will show different colors on different material, generally black, blue black, blue, and brown red. The main reasonfor the difference in color is the difference of steel materials such as carbon, silicon, manganese, chromium, nickeland other elements.Black oxide treatment has lower cost but its film is thin, and has poor adhesion and wear resistance.

发黑处理

Phosphate Treatment
Phosphating refers to chemical treatment in a solution containing zinc, calcium, manganese, iron or an alkali metalphosphate primary salt to form a film on the surface of bearing. The film thickness is 1~4um, which should beconsidered for high precision slewing bearings. The hydrogen embrittlement effect caused by phosphating is small,but its corrosion resistance is much better than blackening. Bearings after phosphate treating has dull surface,mostly in gray, or black gray.

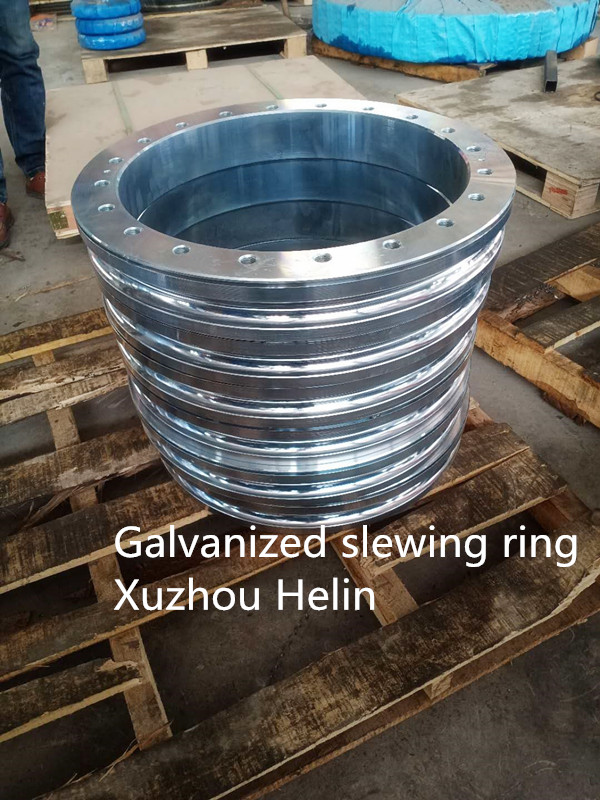

Zinc Plating
Zinc plating, also called galvanizing, is the process of forming a uniform, dense, well-bonded metal or alloy depositon the bearing surface using electrolysis. Its film thickness is 3~ 30um, easy to produce hydrogen embrittlement, soneed to do dehydrogenation. Since its passivation process uses hexavalent chromium, which pollutes the environment, so it's strictly under control internationally.

镀锌1
