Xuzhou Helin Slewing Bearing Co., Ltd. is a specialized precision slewing bearing manufacturer which includes designing, R&D and producing. We are located in Xuzhou City, We produce high -quality slewing bearings .We can guarantee that our slew ring bearings match global standards and are competitively priced. “
How we actually manage to make the slew ring bearings so reliable?
Well, We have a professional technical team. we have more than 20 years of experience in Slewing Bearing/slew drive/ gears. High-quality raw material suppliers , CNC processing equipment , detection equipment and perfect production system and quality control .
So, how we did it?
We have the CNC machine, Teeth machine tool, CNC drill, induction heat treatment facility etc . Leeb hardness tester, Flaw detection appliances, micro-calliper and other inspection tools.
| Part Number | MTO-324T |
| Equivalent to Manufacturer | KAYDON Bearings |
| Gear | Without Gear |
| Type | Ball |
| Bearing Type | Standard |
| Product Type | Slewing Beraing |
| For Load Direction | Four Point Contact |

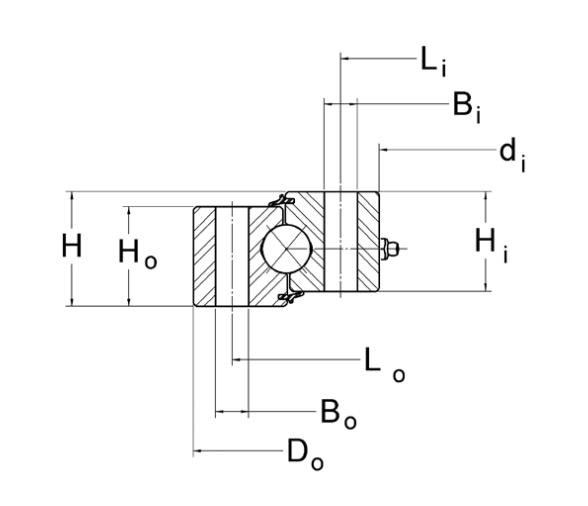

| Inside Diameter Of Inner Ring | 12.75" |
| Outside Diameter Of Outer Ring | 20.486" |
| Height Of Overall Bearing Assembly | 2.062" |
| Height Of Inner Ring | 2.022" |
| Height Of Outer Ring | 2.022" |
| Bolt Circle In Inner Ring | 14.375" |
| Bolt Circle In Outer Ring | 18.875" |
| Size Holes In Inner Ring | 5/8-11" |
| Size Holes In Outer Ring | 5/8-11" |
| Number Holes In Inner Ring | 20 |
| Number Holes In Outer Ring | 20 |
| Moment Load Rating | 102400 ft-lbs |
| Ring Material | 42CRO or 50MN |
| Seal Material | NBR |
| Weight | 105 lbs |
1,Helin slewing bearing is located in Xuzhou, a very famous Construction Machinery Base, and has its own stable, technically sound design, development, and manufacturing team.
2. The physical factory has a strong R&D team, and production equipment is advanced, production equipment is continuously increased and updated, and there are molding batch production lines with clear division of labor and high production efficiency. (Standard models with raw material in stock , delivery time within 7 days . )
3. The slewing bearing is exported to more than 30 countries, which obtain high praise and recognition from customers all over the world .And our engineer can come to your country to do measurements .
Mob / Whatsapp / Wechat : + 86 180 8679 0390
Tel : + 86 516 8788 0390
Email : info@helin-bearing.com
tinaxzhelin@gmail.com
Kindly let us know if any inquiry ! Many thanks !
