Light Type Thin Slewing Bearing Rings

Slewing ring is also called "slewing ring" because its shape is similar to a plate. Its diameter is usually 100 ~ 5000mm. It is a large bearing that can bear axial and radial loads and overturning moments. The slewing bearing is composed of installation hole, inner gear ring or outer gear ring, isolation block, cage, lubricating oil hole and sealing device, so it can make the design structure of the host compact, simple guidance and easy maintenance.

Quantity:
  • H-062.20.1094
  • HELIN

Thin Section Slewing Bearing -- Internal Gear

Characteristic of structure, performance and application

The Thin Section Slewing Bearing has the same structure with the ordinary slewing bearing,but the weight is light,and rotate flexibly,which widely used in the food machinaery,canning machinery and environmental machinery etc.

Our Advantages
1. Fast: Be good at adapting, simple organization, high working efficiency, be creative and accept all kinds of customization.
2. Flexible: streamlined personnel, short communication path, and problems can be solved quickly , perfect after -sales services .
3. Efficient: employees have higher comprehensive ability, high work efficiency, high output, good quanlity and short product

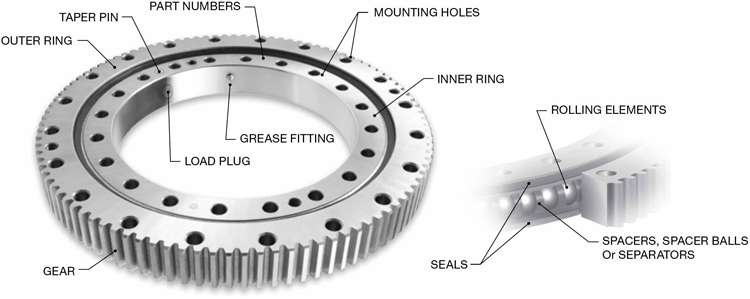

微信图片_20210806154515

External gear slewing ring size :

Note:
1. n1 is the nos of lubricating holes.Oil cup M8×1JB/T7940.1~JB/T7940.2.The Oil nipple's location can be change according to the user's application.
4. "Km" is addendum reduction.

Model
Dimensions Mounting dimension Structural dimension Gear Data Gear circumferential force Clearance
DL Weight

kg
D de H D1 D2 n Φ
t D3 d1 H1 H2 Hu Ho d m z k.m b Allowed Max Axial Radial
mm mm mm mm mm mm M mm mm mm mm mm mm mm mm mm mm mm KN [KN]






mm












H-061.20.0414 31 504 342 56 455 368 20/24 13.5 12 20 412.5 416 46 46 10.5 10.5 495 5 99 -0.5 45.5 11.75 23.5 ≤0.28 ≤0.24
H-061.20.0544 43 641 472 56 585 498 28/32 13.5 12 20 542.5 546 46 46 10.5 10.5 630 6 105 -0.6 45.5 14.2 28.4 ≤0.30 ≤0.26
H-061.20.0644 52 743 572 56 685 598 32/36 13.5 12 20 642.5 646 46 46 10.5 10.5 732 6 122 -0.6 45.5 14.2 28.4 ≤0.30 ≤0.26
H-061.20.0744 59 839 672 56 785 698 36/40 13.5 12 20 742.5 746 46 46 10.5 10.5 828 6 138 -0.6 45.5 14.2 28.4 ≤0.30 ≤0.26
H-061.20.0844 71 950 772 56 885 798 36/40 13.5 12 20 842.5 846 46 46 10.5 10.5 936 8 117 -0.8 45.5 18.93 37.86 ≤0.30 ≤0.26
H-061.20.0944 77 1046 872 56 985 898 40/44 13.5 12 20 942.5 946 46 46 10.5 10.5 1032 8 129 -0.8 45.5 18.93 37.86 ≤0.30 ≤0.26
H-061.20.1094 91 1198 1022 56 1135 1048 44/48 13.5 12 20 1093 1095 46 46 10.5 10.5 1184 8 148 -0.8 45.5 18.93 37.86 ≤0.30 ≤0.26
