Single Row Ball Slewing Bearings Slewing Ring Bearings with External Teeth Ve180A00

Availability:
Quantity:
Inquire Add to Basket

1

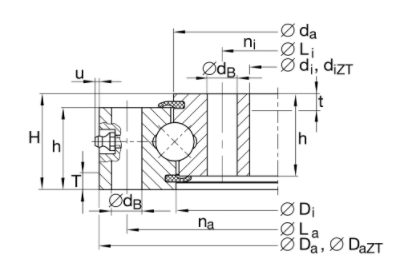

Main Dimensions & Performance Data
di 124.50 mm Inner diameter inner ring
H 35.00 mm Height
Da 234.00 mm Outside Diameter
ha 30.00 mm Width outer ring
hi 30.00 mm Width inner ring

0.04 Normal radial clearance min.

0.14 Normal radial clearance max.

0.07 Normal axial clearance min.

0.23 Normal axial clearance max.

6.30 kg Weight
Dimensions
da 180.00 mm Outside diameter inner ring
dB 11.00 mm Fixing bore
La 214.00 mm Pitchcircle diameter fixing holes outer ring
na 12.00 Number of fixing holes in outer ring
Li 144.50 mm Pitchcircle diameter fixing holes inner ring
ni 12.00 Number of fixing holes in inner ring
Fr zul 52,000.00 N Max. radial load fixing screws (friction locking)
umax 3.00 mm Max. protrusion lubrication nipple
Temperature range
Tmin -25.00 °C Operating temperature min.
Tmax 80.00 °C Operating temperature max.
Calculation factors
Ca 91,000.00 N Basic dynamic load rating, axial
C0a 370,000.00 N Basic static load rating, axial
Cr 82,000.00 N Basic dynamic load rating, radial (for radial load only)
C0r 169,000.00 N Basic static load rating, radial (for radial load only)
