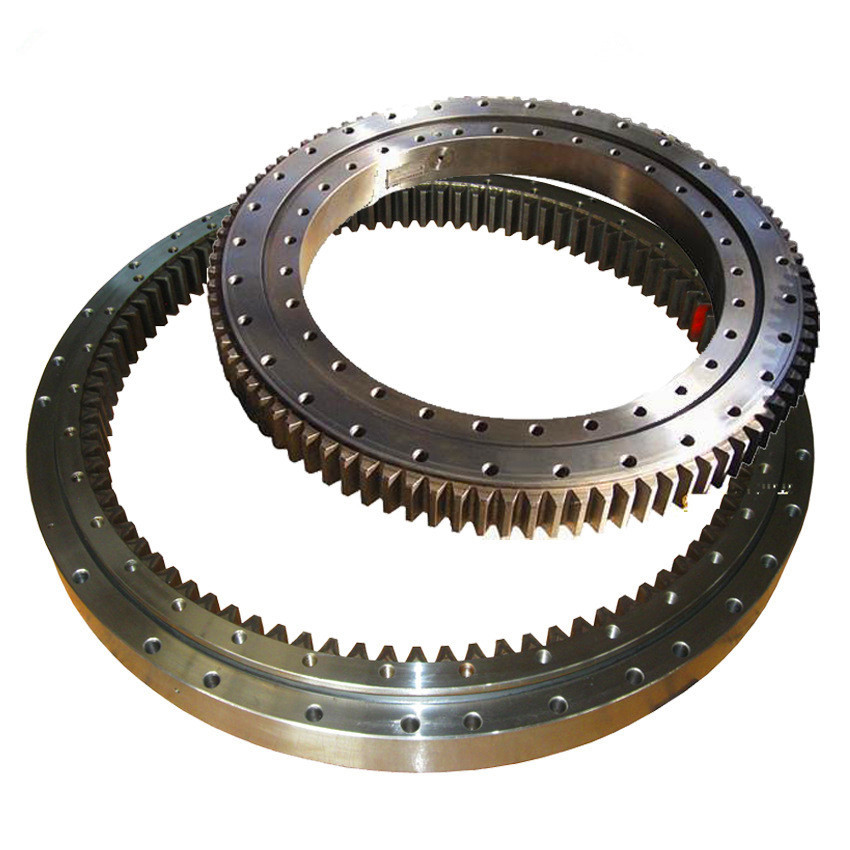

Top Quality Slewing Rings VSU20 0841 SD.916.20.00.B 060.20.0844 33-0841-01 Slewing Ring Bearing Price

Xuzhou Helin Slewing Bearing Co., Ltd. is a professional slewing bearing manufacturer which includes designing, machining, assembling, fabricating and repairing, we provide a turnkey project for all your requirements.
ISO 9001 certficated factory in Xuzhou city , our products size from 100 - 5000 mm with standard and non- standard models
Our products include : slewing bearing , slew drive , pinion gear and flanges etc .

Availability:

Quantity:



Inquire Add to Basket

Product Description

ISO 9001 certficated factory in Xuzhou city , our products size from 100 - 5000 mm with standard and non- standard models .

Equivalent Models

INA	Rothe Erde	TG	(mm)Boundary dimensions				(mm)Bolt hole diameter						(mm)Structure dimensions								(mm)Gear Parameters				Basic load ratinge Coa	Weight (KG)
INA	Rothe Erde	TG	Da	D	di	H	La	Li	n1	n2	φ1	φ2	D1	d	b	h	B	C	Di	da	m	z	do	x	Basic load ratinge Coa	Weight (KG)
			340		216	39	324	252	20	20	M6	M6	310	238	30	5	34	34	279	277	4	56	224		300	10
VLI200414N ZT			518		325	56	490	375	8	12	φ18	M12	458.5	350	40	11.5	44.5	47.5	415.5	412.5	5	67	335		600	28.5
VLI 20 0414N ZT RL2			516		325	56	490	375	8	12	φ18	M12	456	350	40	11.5	44.5	47.5	415.5	412.5	5	67	335		300	36.3
VLI200414N			518		325	56	490	375	8	12	18	M12		350	40	8.5	44.5	47.5	415.5	412.5	5	67	335		295	27.5
	232.20.0400.013		518		326.5	56	490	375	8	12	18	M12			45.5	10.5	45.5	45.5	415.5	412.5	5	67	335		250	27.1
	232.20.0400.503		518		326.5	56	490	375	16	12	18	M12			45.5	10.5	45.5	45.5	415.5	412.5	5	67	335		250	26.9
	232.21.0475.013		517		326.5	56	490	375	8	12	18	M12			45.5	10.5	45.5	45.5	415.5	411	5	67	335		250	27.1
		I.505.20.00.C	518		326.5	56	490	375	8	12	φ18	M12	453		46	10	46	46	415.5	412.5	5	67	335		500	35.4
VLI200544N ZT			648		444	56	620	505	10	16	φ18	M12	588.5		44.5	11.5	44.5	47.5	545.5	542.5	6	76	456		790	40.6
VLI200544N			648		444	56	620	505	10	16	18	M12			44.5	11.5	44.5	47.5	545.5	542.5	6	76	456		385	38
	232.20.0500.013		648		445.2	56	620	505	10	16	18	M12			45.5	10.5	45.5	45.5	545.5	542.5	6	76	456		330	36.9
	232.20.0500.503		648		445.2	56	620	505	20	16	18	M12			45.5	10.5	45.5	45.5	545.5	542.5	6	76	456		330	36.7
	232.21.0575.013		647		445.2	56	620	505	10	16	18	M12			45.5	10.5	45.5	45.5	545.5	541	6	76	456		330	36.9
		I.650.20.00.C	648		445.2	56	620	505	10	16	φ18	M12	583		46	10	46	46	545.5	542.5	6	76	456		700	40.2
VLI200644N ZT			748		546	56	720	605	12	18	φ18	M12	688.5		44.5	11.5	44.5	47.5	645.5	642.5	6	93	558		900	47.4
VLI200644N			748		546	56	720	605	12	18	18	M12			44.5	8.5	44.5	47.5	645.5	642.5	6	93	558		455	45
	232.20.0600.013		748		547.2	56	720	605	12	18	18	M12			45.5	10.5	45.5	45.5	645.5	642.5	6	93	558		390	43.7
	232.20.0600.503		748		547.2	56	720	605	24	18	18	M12			45.5	10.5	45.5	45.5	645.5	642.5	6	93	558		390	43.4
.	232.21.0675.013		747		547.2	56	720	605	12	18	18	M12			45.5	10.5	45.5	45.5	645.5	641	6	93	558		390	43.7
		I.750.20.00.C	748		547.2	56	720	605	12	18	φ18	M12	683		46	10	46	46	645.5	642.5	6	93	558		780	53.3
VLI200744N ZT			848		648	56	820	705	12	20	φ18	M12	788.5		44.5	11.5	44.5	47.5	745.5	742.5	6	110	660		530	54
VLI200744N			848		648	56	820	705	12	20	18	M12			44.5	8.5	44.5	47.5	745.5	742.5	6	110	660		530	51.5
	232.20.0700.013		848		649.2	56	820	705	12	20	18	M12			45.5	10.5	45.5	45.5	745.5	742.5	6	110	660		450	51.1
	232.20.0700.503		848		649.2	56	820	705	24	20	18	M12			45.5	10.5	45.5	45.5	745.5	742.5	6	110	660		450	50.8
	232.21.0775.013		847		649.2	56	820	705	12	20	18	M12			45.5	10.5	45.5	45.5	745.5	741	6	110	660		450	51.1
		I.850.20.00.C	848		649.2	56	820	705	12	20	φ18	M12	783		46	10	46	46	745.5	742.5	6	110	660		910	63.1
VLI200844N ZT			948		736	56	920	805	14	20	φ18	M12	888.5		44.5	11.5	44.5	47.5	845.5	842.5	8	94	752		1200	65.2
VLI200844N			948		736	56	920	805	14	20	18	M12			44.5	8.5	44.5	47.5	845.5	842.5	8	94	752		600	61.5
	232.20.0800.013		948		737.6	56	920	805	14	20	18	M12			45.5	10.5	45.5	45.5	845.5	842.5	8	94	752		510	61.6
	232.20.0800.503		948		737.6	56	920	805	28	20	18	M12			45.5	10.5	45.5	45.5	845.5	842.5	8	94	752		510	61.3
	232.21.0875.013		947		737.6	56	920	805	14	20	18	M12			45.5	10.5	45.5	45.5	845.5	841	8	94	752		510	61.6
		I.950.20.00.C	948		737.6	56	920	805	14	20	φ18	M12	883		46	10	46	46	845.5	842.5	8	94	752		1030	76.6
VLI300955N			1100		810	90	1060	894	30	30	22	M20			71	19	71	71	953	957	10	83	830		2550	164
	282.30.0900.013		1100		812	90	1060	894	30	30	22	M20			71	19	71	71	953.5	956.5	10	83	830		1750	159
	282.30.0975.013		1098		812	90	1060	894	30	30	22	M20			71	19	71	71	953.5	955	10	83	830		1750	159
		I.1100.32.00.C	1100		812	90	1060	894	30	30	φ12	M20	1017		71	19	71	71	955	955	10	83	830		2250	159
VLI200944N ZT			1048		840	56	1020	905	16	22	φ18	M12	988.5		44.5	11.5	44.5	47.5	945.5	942.5	8	107	856		1350	71
VLI200944N			1048		840	56	1020	905	16	22	18	M12			44.5	8.5	44.5	47.5	945.5	942.5	8	107	856		670	67.5
	232.20.0900.013		1048		841.6	56	1020	905	16	22	18	M12			45.5	10.5	45.5	45.5	845.5	942.5	8	107	856		570	65.8
	232.20.0900.503		1048		841.6	56	1020	905	32	22	18	M12			45.5	10.5	45.5	45.5	945.5	942.5	8	107	856		570	65.4
	232.21.0975.013		1047		841.6	56	1020	905	16	22	18	M12			45.5	10.5	45.5	45.5	845.5	941	8	107	856		570	65.8
		I.1050.20.00.C	1048		841.6	56	1020	905	16	22	φ18	M12	983		46	10	46	46	945.5	942.5	8	107	856		1440	79.8
VLI301055N			1200		910	90	1160	994	30	30	22	M20			71	19	71	71	1053	1057	10	93	930		2800	181
	282.30.1000.013		1200		912	90	1160	994	30	30	22	M20			71	19	71	71	1053.5	1056.5	10	93	930		1840	176
	282.30.1075.013		1198		912	90	1160	994	30	30	22	M20			71	19	71	71	1053.5	1055	10	93	930		1840	176
		I.1200.32.00.C	1200		912	90	1160	994	30	30	φ12	M20	1117		71	19	71	71	1055	1055	10	93	930		2500	176
VLI201094N ZT			1198		984	56	1170	1055	16	24	φ18	M12	1138.5		44.5	11.5	44.5	47.5	1095.5	1092.5	8	125	1000		2000	80
VLI201094N			1198		984	56	1170	1055	16	24	18	M12			44.5	8.5	44.5	47.5	1095.5	1092.5	8	125	1000		770	81.5
	232.20.1000.013		1198		985.6	56	1170	1055	16	24	18	M12			45.5	10.5	45.5	45.5	1095.5	1092.5	8	125	1000		665	80.7
	232.20.1000.503		1198		985.6	56	1170	1055	32	24	18	M12			45.5	10.5	45.5	45.5	1095.5	1092.5	8	125	1000		665	80.3
	232.21.1075.013		1197		985.6	56	1170	1055	16	24	18	M12			45.5	10.5	45.5	45.5	1095.5	1091	8	125	1000		665	80.7
		I.1200.20.00.C	1198		985.6	56	1170	1055	16	24	φ18	M12	1133		46	10	46	46	1095.5	1092.5	8	125	1000		1700	101
			1198		986	56	1170	1055	16	24	φ18	M12	1134		46	10	46	46	1093	1089	8	125	1000		1740	89
VLI301155N			1300		1010	90	1260	1094	36	36	22	M20*40			71	19	71	71	1153	1157	10	103	1030		3100	198
	282.30.1100.013		1300		1012	90	1260	1094	36	36	22	M20			71	19	71	71	1153.5	1156.5	10	103	1030		1900	192
	282.30.1175.013		1298		1012	90	1260	1094	36	36	22	M20			71	19	71	71	1153.5	1155	10	103	1030		1900	192
		I.1300.32.00.C	1300		1012	90	1260	1094	36	36	φ12	M20	1217		71	19	71	71	1155	1155	10	103	1030		2700	192
VLI301255N			1400		1110	90	1360	1194	42	42	22	M20*40			71	19	71	71	1253	1257	10	113	1130		3350	215
	282.30.1200.013		1400		1112	90	1360	1194	42	42	22	M20			71	19	71	71	1253.5	1256.5	10	113	1130		1950	208
	282.30.1275.013		1398		1112	90	1360	1194	42	42	22	M20			71	19	71	71	1253.5	1255	10	113	1130		1950
	I.1400.32.00.C	1400		1112	90	1360	1194	42	42	φ12	M20	1317		71	19	71	71	1255	1255	10	113	1130		3000	208
		1500		1210	90	1460	1294	42	42	22	M20*40			71	19	71	71	1353	1357	10	123	1230		3600	233
282.30.1300.013		1500		1212	90	1460	1294	42	42	22	M20			71	19	71	71	1353.5	1356.5	10	123	1230		2000	226
282.30.1375.013		1498		1212	90	1460	1294	42	42	22	M20			71	19	71	71	1353.5	1355	10	123	1230		2000	226
	I.1500.32.00.C	1500		1212	90	1460	1294	42	42	φ12	M20	1417		71	19	71	71	1355	1355	10	123	1230		3200	226
282.30.1400.013		1600		1310	90	1560	1394	48	48	22	M20			71	19	71	71	1453.5	1456.5	10	133	1330		2050	243
282.30.1475.013		1598		1310	90	1560	1394	48	48	22	M20			71	19	71	71	1453.5	1455	10	133	1330		2050	243
	I.1600.32.00.C	1600		1310	90	1560	1394	48	48	φ12	M20	1517		71	19	71	71	1455	1455	10	133	1330		3380	243
		1600		1310	90	1560	1394	48	48	22	M20*40			71	19	71	71	1453	1457	10	133	1330		4000	251
