H-231.30.1455
Xuzhou Helin
231.30.1455
The Thin Section Slewing Bearing has the same structure with ordinary slewing bearing,but the weight is light,and rotate flexibly.
Title:H-231.30.1455
Strengths:The Oil nipple's location can be change according to the user's application.
Packaging Details: Flexible Rotation Thin Section Slewing Ring H-231.30.1455
First fully lubricated, second wrapped with plastic film, Kraft paper,blue belt,then firmed in wooden case,finally sitting on wooden pallet in wooden box.
Application:
1.food machinaery,
2.canning machinery
3.environmental machinery etc.

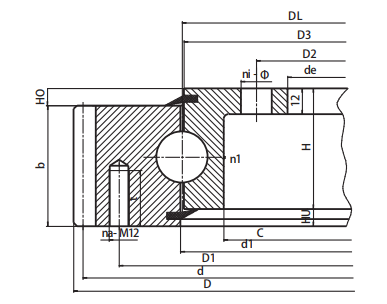

Model | Dimensions (mm) | Mounting dimension (mm) | ||||||||
D | de | H | D1 | D2 | na | Φ/M | ni | Φ/M | t | |
H-231.30.1455 | 1600 | 1305 | 90 | 1455 | 1345 | 48 | M20 | 48 | 22 | 30 |
Size : 1600x 1305x 90 mm
Note:
1. N1 is the numbers of lubricating holes. Oil cup M8×1JB/T7940.1~JB/T7940.
2. The Oil nipple's location can be change according to the user's application.
3. "Km" is addendum reduction; m: module; z: teeth nos.
4. For the load curve capacity, please download our catalogue for slewing bearing.
Following is other models we have for your reference :
Model DL | Wght | Dimensions | Mounting dimension | Structural dimension | Gear data | Gear | Clearance | ||||||||||||||||||
circumferential | |||||||||||||||||||||||||
kg | force | ||||||||||||||||||||||||
D | de | H | D1 | D2 | na | Φ/M | ni | Φ/M | t | n1 | D3 | d1 | C | Hu | d | m | z | b | k.m | Allowed | Max | Axial | Radial | ||
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | [KN] | |||||||
H-231.20.0414 | 29 | 504 | 304 | 56 | 455 | 332 | 10 | M12 | 24 | 18 | 20 | 4 | 412.5 | 415.5 | 375 | 10.5 | 495 | 5 | 99 | 45.5 | -0.5 | 11.75 | 23.5 | ≤0.5 | ≤0.5 |
H-231.20.0544 | 39.2 | 640.8 | 434 | 56 | 585 | 462 | 14 | M12 | 28 | 18 | 20 | 4 | 542.5 | 545.5 | 505 | 10.5 | 630 | 6 | 105 | 45.5 | -0.5 | 14.2 | 28.4 | ≤0.5 | ≤0.5 |
H-231.20.0644 | 47.2 | 742.8 | 534 | 56 | 685 | 562 | 16 | M12 | 32 | 18 | 20 | 4 | 642.5 | 645.5 | 605 | 10.5 | 732 | 6 | 122 | 45.5 | -0.6 | 14.2 | 28.4 | ≤0.5 | ≤0.5 |
H-231.20.0744 | 53.1 | 838.8 | 634 | 56 | 785 | 662 | 18 | M12 | 32 | 18 | 20 | 4 | 742.5 | 745.5 | 705 | 10.5 | 828 | 6 | 138 | 45.5 | -0.6 | 14.2 | 28.4 | ≤0.5 | ≤0.5 |
H-231.20.0844 | 64.7 | 950.4 | 734 | 56 | 885 | 762 | 18 | M12 | 36 | 18 | 20 | 4 | 842.5 | 845.5 | 805 | 10.5 | 936 | 8 | 117 | 45.5 | -0.8 | 18.93 | 37.86 | ≤0.5 | ≤0.5 |
H-231.20.0944 | 69.1 | 1046 | 834 | 56 | 985 | 862 | 20 | M12 | 40 | 18 | 20 | 4 | 942.5 | 945.5 | 905 | 10.5 | 1032 | 8 | 129 | 45.5 | -0.8 | 18.93 | 37.86 | ≤0.5 | ≤0.5 |
H-231.20.1094 | 82.5 | 1198 | 984 | 56 | 1135 | 1012 | 22 | M12 | 40 | 18 | 20 | 4 | 1093 | 1095.5 | 1055 | 10.5 | 1184 | 8 | 148 | 45.5 | -0.8 | 18.93 | 37.86 | ≤0.5 | ≤0.5 |
Xuzhou Helin Slewing Bearing Co., Ltd. is a professional slewing bearing manufacturer which includes designing, machining, assembling, fabricating and repairing, we provide a turnkey project for all your requirements.
Our company specializes in slewing bearings such as Single Row Ball Series (Series 01 / Series HS/ Series Q), Double Row Ball Series (Series 02), Three Row Roller Series (Series 13), Single Row Cross Roller Series (Series 11/ Series HJ), Light Type Series and Flange Type Series.
Our products are manufactured according to JB/T2300-2011, JB/T10471-2004, JB/T66-1999, JG/T67-1999 and also we have passed ISO9001:2015 . Our product sizes range from 100mm-4,000mm with standard and non-standard models.
You are always welcome to be here in-Xuzhou Helin Slewing Bearing Co., Ltd - with high quality products and perfect services.
Mob / Whatsapp / Wechat : + 86 180 8679 0390
Tel : + 86 516 8788 0390
Email : info@helin-bearing.com
tinaxzhelin@gmail.com
Kindly let us know if any inquiry ! Many thanks !
