Internal Gear VLI200844-N Four Point Contact Large Swing Turntable Slewing Bearing

Availability:

Quantity:



Inquire Add to Basket

Product Description

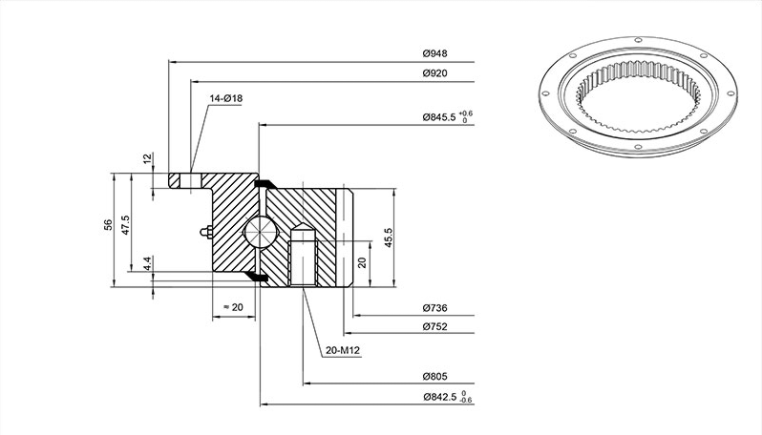

INA Part No.	VLI200844-N
Gear	Internal gear
Type	Ball
Inside Diameter Of Inner Ring	736 mm
Outside Diameter Of Outer Ring	948 mm
Internal Diameter On Outer Ring (Di)	845.5 mm
External Diameter On Inner Ring (do)	842.5 mm
Height Of Overall Bearing Assembly (H)	56 mm
Weight	61.5 kg
Bolt Circle In Outer Ring (Lo)	920 mm
Number Holes In Outer Ring (no)	14
Bolt Circle In Inner Ring (Li)	805 mm
Number Holes In Inner Ring (ni)	20
Number Of Gear Teeth (z2)	94
b	752 mm
dazt	841 mm
D azt	946 mm
Maximum Allowable Radial Load	82600 N
Maximum Allowable Bending Fatigue Strength Of Gear Teeth	31400 N
Maximum Allowable Contact Fatigue Strength Of Gear teeth	46700 N
Basic Dynamic Load Rating Axial (Ca)	182000 N
Basic Static Load Rating Axial (C0a)	600000 N
Basic Dynamic Load Rating Radial (Cr)	164000 N
Basic Static Load Rating Radial (C0r)	224000 N
Maximum Radial Bearing Clearance	0.5
Maximum Axial Tilting Clearance	0.7
Taper Type Lubrication Nipples	4
Bearings Are Also Available Without Holes In The Bearing Rings	YES
Tooth Modules	8 mm

Slewing Bearing flange type swing bearing VLI200844-N
