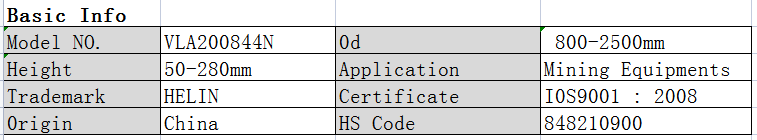

Slewing ring bearing is a bearing that able to bear axial load, radial load and overturning torque. Under normal circumstances, slewing ring bearings have their own mounting holes, lubricant holes and seal holes, to meet the different needs of the various host working under the various conditions;On the other hand, slewing ring bearing itself has characteristics of compact structure, guide rotating convenient, easy to install and maintaining easily.
Our Xuzhou Helin slewing ring bearings are usually used for low revolution while shaking and strained with an enormous axial force, moment and in some parts with radial force simultaneously.
Mob/ Whatsapp / Wechat : + 86- 180 8679 0390
Tel : + 86 -516- 8788 0390
Email : info@helin-bearing.com
tinaxzhelin@gmail.com
Please do not hesitate to reach our to us if you have any further questions.
Note:
1. n1 is the nos of lubricating holes.Oil cup M8×1JB/T7940.1~JB/T7940.2.The Oil nipple's location can be change according to the user's application.
2. "Km" is addendum reduction.
Model
DL | Wght | Dimensions | Mounting dimension | Structural dimension | Gear data | Gear | Clearance |
| circumferential |
| kg | force |
| D | de | H | D1 | D2 | na | Φ/M | ni | Φ/M | t | n1 | D3 | d1 | C | Hu | d | m | z | b | k.m | Allowed | Max | Axial | Radial |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | [KN] |
| H-231.20.0414 | 29 | 504 | 304 | 56 | 455 | 332 | 10 | M12 | 24 | 18 | 20 | 4 | 412.5 | 415.5 | 375 | 10.5 | 495 | 5 | 99 | 45.5 | -0.5 | 11.75 | 23.5 | ≤0.5 | ≤0.5 |
| H-231.20.0544 | 39.2 | 640.8 | 434 | 56 | 585 | 462 | 14 | M12 | 28 | 18 | 20 | 4 | 542.5 | 545.5 | 505 | 10.5 | 630 | 6 | 105 | 45.5 | -0.5 | 14.2 | 28.4 | ≤0.5 | ≤0.5 |
| H-231.20.0644 | 47.2 | 742.8 | 534 | 56 | 685 | 562 | 16 | M12 | 32 | 18 | 20 | 4 | 642.5 | 645.5 | 605 | 10.5 | 732 | 6 | 122 | 45.5 | -0.6 | 14.2 | 28.4 | ≤0.5 | ≤0.5 |
| H-231.20.0744 | 53.1 | 838.8 | 634 | 56 | 785 | 662 | 18 | M12 | 32 | 18 | 20 | 4 | 742.5 | 745.5 | 705 | 10.5 | 828 | 6 | 138 | 45.5 | -0.6 | 14.2 | 28.4 | ≤0.5 | ≤0.5 |
| H-231.20.0844 | 64.7 | 950.4 | 734 | 56 | 885 | 762 | 18 | M12 | 36 | 18 | 20 | 4 | 842.5 | 845.5 | 805 | 10.5 | 936 | 8 | 117 | 45.5 | -0.8 | 18.93 | 37.86 | ≤0.5 | ≤0.5 |
| H-231.20.0944 | 69.1 | 1046 | 834 | 56 | 985 | 862 | 20 | M12 | 40 | 18 | 20 | 4 | 942.5 | 945.5 | 905 | 10.5 | 1032 | 8 | 129 | 45.5 | -0.8 | 18.93 | 37.86 | ≤0.5 | ≤0.5 |
| H-231.20.1094 | 82.5 | 1198 | 984 | 56 | 1135 | 1012 | 22 | M12 | 40 | 18 | 20 | 4 | 1093 | 1095.5 | 1055 | 10.5 | 1184 | 8 | 148 | 45.5 | -0.8 | 18.93 | 37.86 | ≤0.5 | ≤0.5 |
